Description

Features

Large span

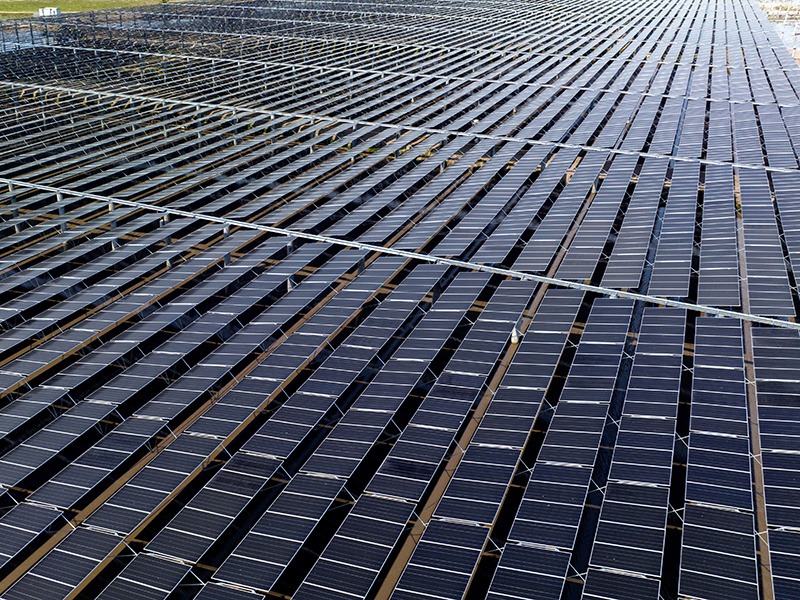

● The nearly 40m span design is suitable for elevated photovoltaic projects such as agricultural photovoltaic and fishery photovoltaic.

Reduce the amount of pile foundation

● As low as 94 piles per megawatt

Adaptable to large tilt angles

● Allows for a larger tilt angle of the modules, increasing power generation.

Easy to install

● Tension adjustment of the steel strand is achieved through a special tensioning structure and threaded screws.

Strong wind resistance

● The lower layer adopts a unique double-cable, trumpet-shaped suspension structure, effectively enhancing the overall resistance to horizontal wind loads. The front and rear truss connections, along with the upper and lower double-layer cable structure, effectively reduce the sag ratio of large-span structures and improve the overall wind resistance of the support structure.

Lower cost

● By optimizing the structure and the arrangement of steel strands, the investment cost can be reduced by 2-5% compared to traditional power plants while reducing the amount of pile foundation used.

GQ-T1 System Parameters
